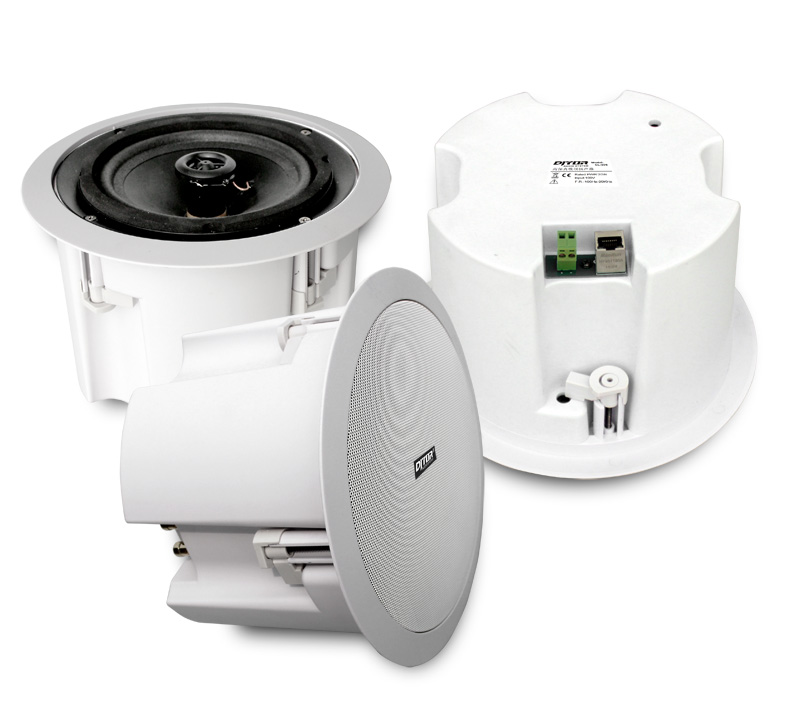

N-615 POE网络天花扬声器

The IP Network PoE Speaker is powered by PoE+network switch through CAT5 or CAT6 connection - no external power supply is required.
Built-in Class D amplifier provides effective use of power,the system outputs rated power 8W when use the Power Over Ethernet. An additional inlet is ready to connect separate DC12V(4A) power source,which will make the system output rated power 30W.
The speaker unit in the system is of the coaxial type with an 6.5" woofer of polypropylene,an inverted rubber surround,and a 1" polyamide soft dome tweeter mounted on a post,these two drivers are coupled through a built-in capacitor bypass crossover.
This speaker system has excellent dispersion,wide bandwidth and a smooth frequency response which makes this the top choice for voice paging,playing music,emergency notification alerting and bell scheduling applications.

Features:
Supports protocols of TCP/IP,UDP,IGMP.
Static IP Address
Integrated Class D amplifier .
PoE+powered without a need for local power.
RJ45 connection for audio from PoE+Ethernet.
6.5" polypropylene cone with inverted rubber surround.
1" Polyamide dome tweeter.

Model:N-615
Amplifier Type:Class D
Power Supply:PoE or DC12V(4A)
Rated Power:Power Over Ethernet: 8W
DC12V(4A): 30W
LAN Connecto:RJ45
DC12V Connector Phoenix connector
Transmission Speed:10/100Mbps
Communication Protocol:TCP/IP, UDP, IGMP
Sampling Rate:8K~48K
Audio Bit Rate:8K~512Kbps
Speaker Driver:6.5" woofer, 1" tweeter
Sensitivity(1m,1w):89dB±3dB
Frequency Response:90Hz～20KHz（±3dB）
Dimensions (mm):Ø240*155mm
Cutting Hole (mm):Ø210mm
Material:ABS enclosure,metal grille
Net Weight (kg):2.4 kg
